Window screens

Insect window screen - Type E

Detaily Insect window screen - Type E Product gallery + +

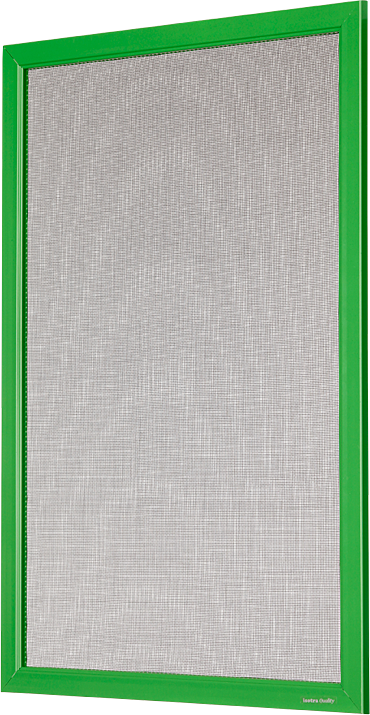

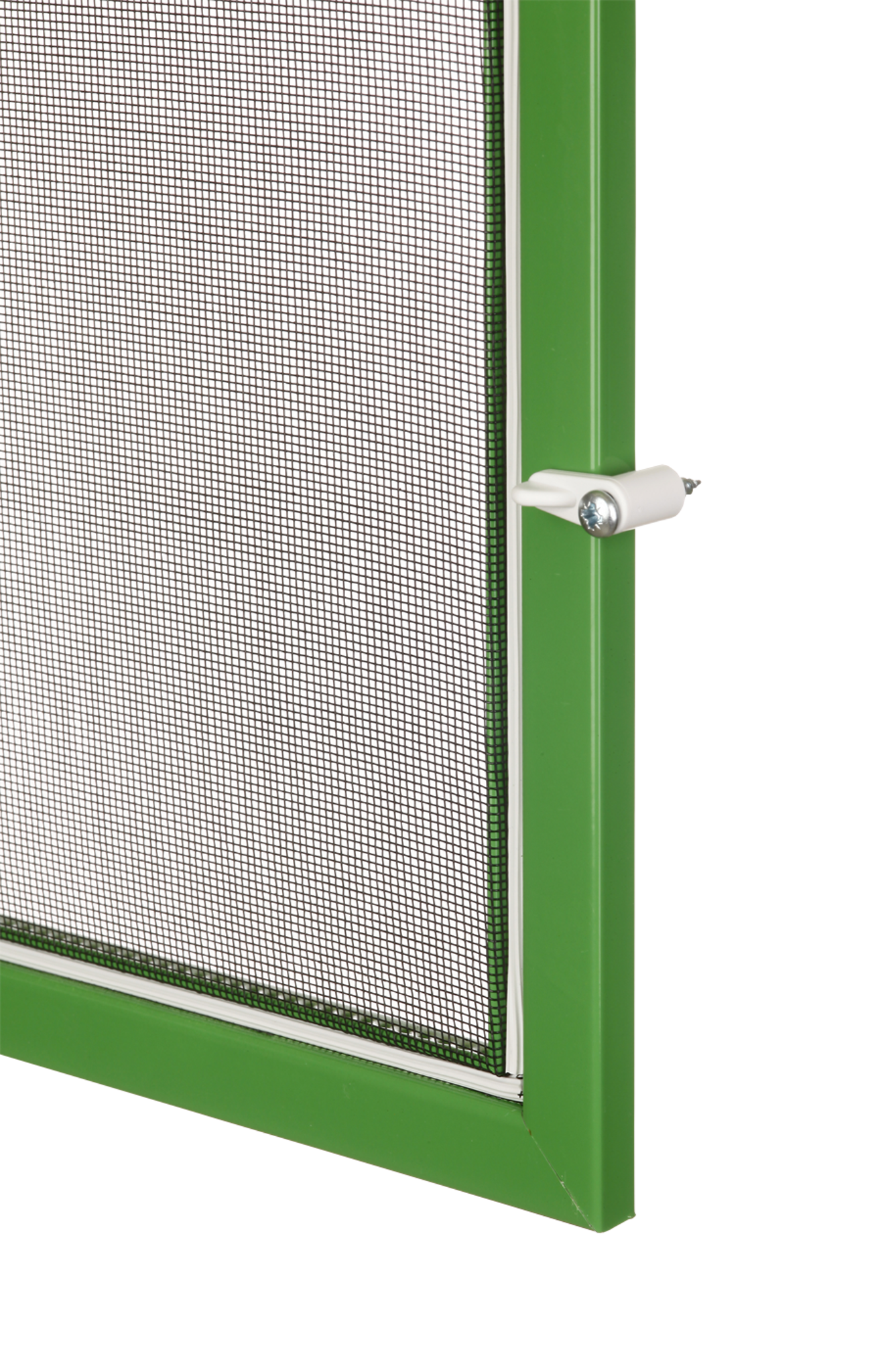

A practical insect screen especially recommended for older types of windows or for fitting in construction holes. Screens E are the predecessors of the newer anti-insect window screens. The insect screen is fitted on the window by fasteners and requires the screen to be drilled into the window frame.
Individual screens E differ in the form, profile size and manner of fixation. The insect screen is fixed in a solid aluminium frame available in wood imitation or any RAL colour.
I am interested in this product
Advantages

Benefits & advantages

  • aluminium frame
  • it is recommended for windows with drip moulding, for fixing into construction holes and for older types of windows
  • the colour of the frame is according to the RAL sampler or in wood imitation
Get

Inspiration

Inspirace Insect window screen - Type E
Explore

Colour variants

Basic colours frame

RAL 8019
RAL 8019
RAL 9003
RAL 9003
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Guaranteed

Dimensions

minimum width
400 mm
maximum width
2000 mm
minimum height
400 mm
maximum height
2000 mm
maximum area
3,6 m2
Non-standard dimensions are produced. Non-standard screens are always fitted with reinforcement and internal corners.
Aluminium reinforcement is delivered from the width/height of 1200mm.
Guaranteed dimensions

Technical parameters


 Frame Max.
guaranteed dimensions		 Method of fixation Number of assembly clamps Size of
clamps (mm)		 Corner Screen
internal external grey black reinforced white*
Business name
 SC 301
 3,6 m2
 fastener 6 Yes Yes Yes Yes Yes Yes
Dimensions (mm) 25 × 10
Material Al
Cross-section Cross-section
Colour Standard:
RAL 9003 white
RAL 8019 brown

Surcharge:
RAL on request.

* It is valid for the white mesh that one of the measures (width or height) have to be smaller than 1 450 mm.

Assembly options

  • on the window frame using fasteners (requires drilling into the frame)
