Setta 90 exterior blind

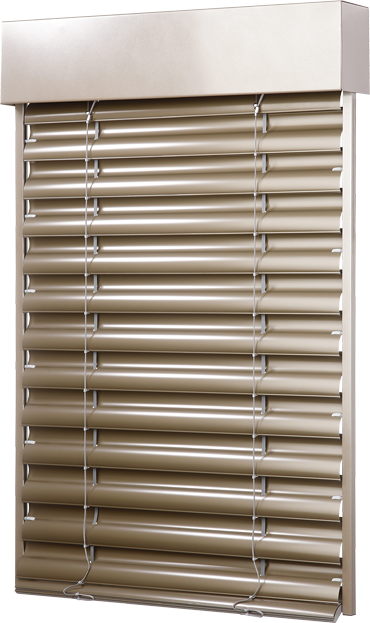

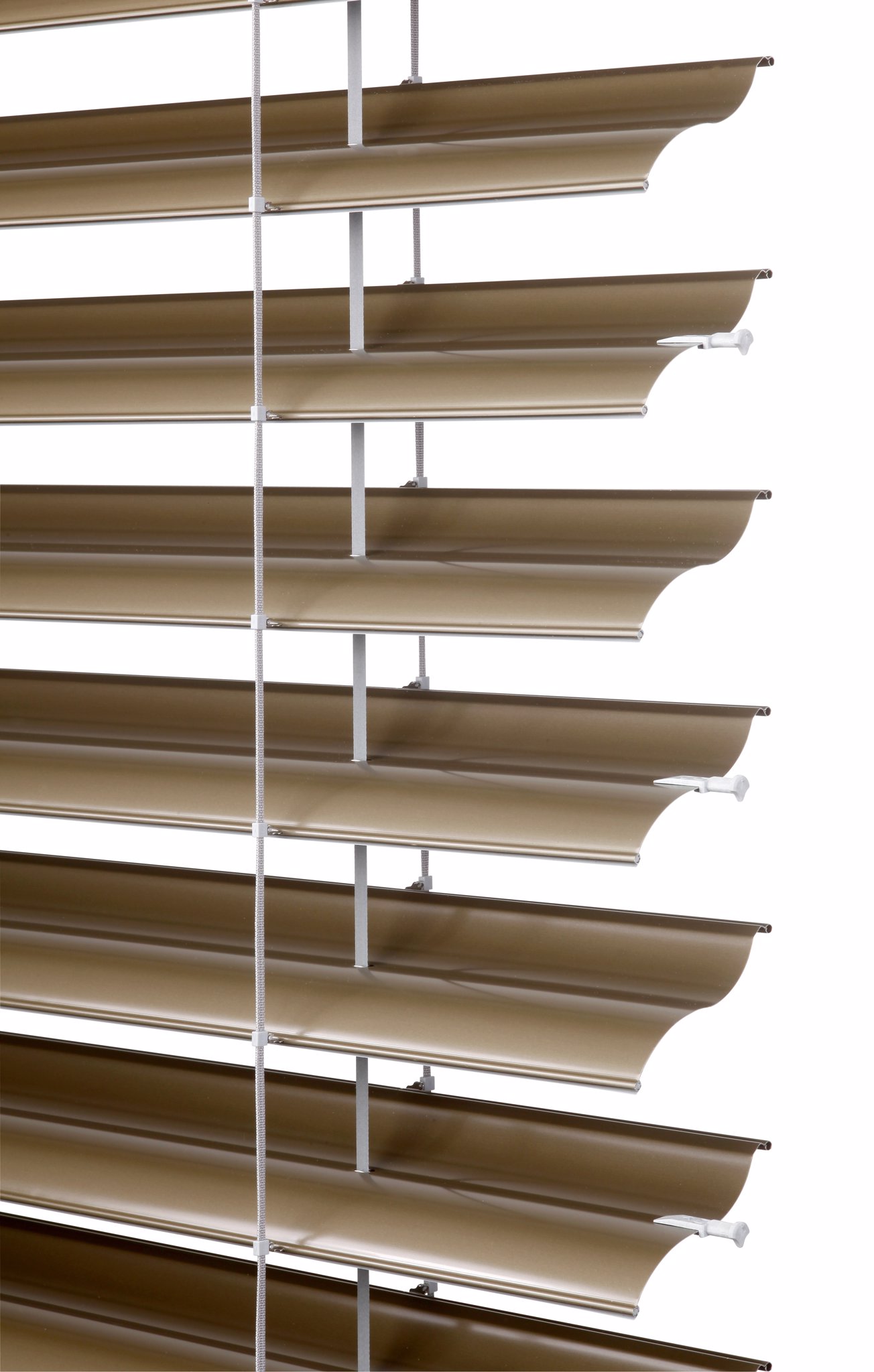

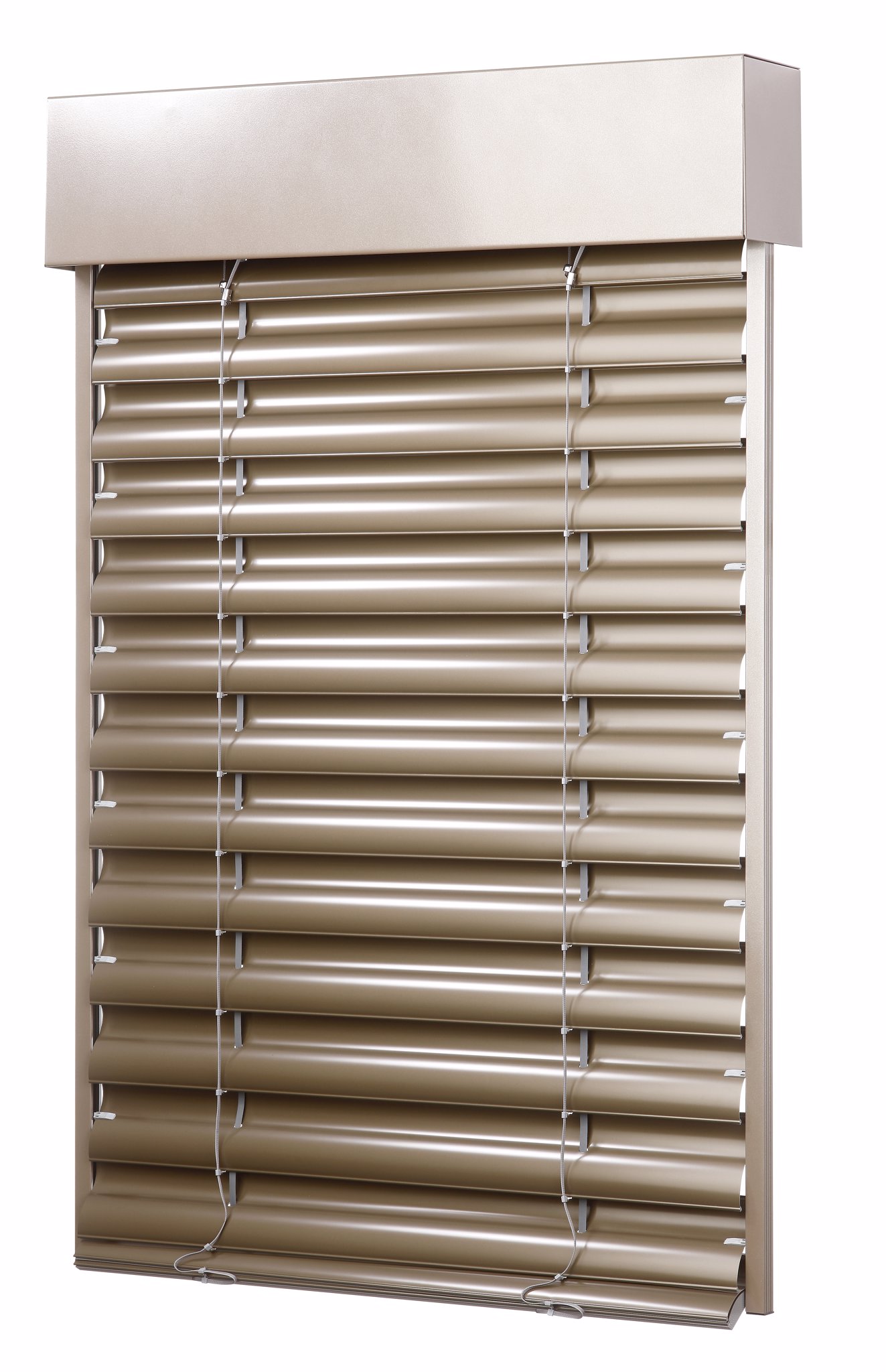

The Setta 90 exterior blind represents top exterior shading in terms of purpose and design. The “S” shaped slats with a width of 90 mm create a perfectly integrated area when closed. The purposefulness of the Setta outdoor blind is strengthened by its simple appearance. Compared with the Setta 65 blind, the Setta 90 outdoor window blind is recommended for shading large areas because the lamellas have a greater optical effect. The thermo-regulation effect of the Setta blind is increased by the rubber impressed along the whole length of the slat. The aluminium guiding bars ensure stability of the blind in wind and are a supporting element for securing the house against burglary. The variability of the assembly, elegance and perfect shading creates a unique shading element for all types of objects from this horizontal blind.

I am interested in this product

Advantages

Benefits & advantages

elegant design construction with “S“ shaped slat
high level of shading
thermoregulation and protective effect
decrease in the level of outside noise
bottom rail from the extruded aluminium
electric control option
decreased noise of the blind (impressed rubber along the whole length of the blind)
maximum guaranteed area 24 m².

Get

Inspiration

Explore

Colour variants

Basic colours lamella

other colours

Colours at extra charge lamella

Colour performance Isotra System Decoral 1 at extra charge cover box, guiding rail, guiding rail holder, head + bottom rail

other colours

Colour performance Isotra System Decoral 2 at extra charge cover box, guiding rail, guiding rail holder, head + bottom rail

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Methods

Handling

manually
by handle

electrically
by remote control unit or the switch

Guaranteed

Dimensions

minimum width
600 mm

maximum width
6000* mm

maximum height
4000 mm

maximum area
8 m² (for handle control))
24 m² (for motor control)

* Note: The wider the blind, the lower its wind resistance class – see Wind resistance, further down the page.

Non-standard dimensions are not produced.

Technical parameters

	Upper profile		Lower profile	Lamella	Side guiding		Ladder	Textile strip
	Upper profile		Lower profile	Lamella	Guiding bar	Cord	Ladder	Textile strip
Business name	P 001/1	P 001/2	P 012/21	S 039	see Technical manual	P 036	P 029/1	P 531, P531/1
Dimensions (mm)	56 × 58	58 × 60	93 × 14	0,42 × 113	see Technical manual	Ø 3,2	86 × 9,5	6 × 0,28
Material	Fe	Al	Al	Al	see Technical manual	Fe / PVC	PES	PES
Cross-section
Colour	Standard: galvanized steel plate natural (Al profil) Other RAL colors sprayed, DECORAL*		Standard: anodized aluminum Other RAL colors sprayed, DECORAL*	According to the actual sampler from ISOTRA a.s.	Standard: anodized Other RAL colors sprayed, DECORAL*	grey black	grey black	grey black

*for max. width 4000 mm
Non-standard dimensions are not produced.

Assembly options

Basic types of assembly

These three types of assembly can be in two versions: cover box cold-wet/ cover box incorporated into heat-insulation system or peripheral shell.

Specific assembly

Self-bearing version (fixation of the blind on guiding bars)
Façade version (round cassette; assembly on the facade)
Assembly into Heluz bresummer (built-in guiding bars)
Assembly into Porotherm bresummer (recommended for independent construction)
The self-supporting blind with packet of slats outside the head rail

It is necessary to consider assembly into the bresummer in the design phase for a family home.

Wind resistance

Wind resistance tests performed by the Center of building engineering in Zlín according to ČSN EN 13659.

Guiding rope

Essential characteristics	Performance
	Width of construction hole L (mm)	L <= 2 000		2 000 < L <= 3 000		3 000 < L <= 4 000		4 000 < L <= 4 500		4 500 < L <= 4 800		4 800 < L <= 5 000
	Standard EN/Beaufort	13659	Beaufort	13659	Beaufort	13659	Beaufort	13659	Beaufort	13659	Beaufort	13659	Beaufort
	Wind resistance class	3	6	2	5	1	4	0	3	0	2	0	1
	Max. wind speed v_max (km/h)	49		38		28		19		11		5
	Max. effective height wing	H_max = 2500 mm
	Width of construction hole L (mm)	L <= 2 000		2 000 < L <= 3 000		3 000 < L <= 4 000		4 000 < L <= 4 500		4 500 < L <= 4 800		4 800 < L <= 5 000
	Wind resistance class	2	5	1	4	0	3	0	2	0	1	0	0
	Max. wind speed v_max (km/h)	38		28		19		11		5		1
	Max. effective height wing	H_max = 4000 mm
Additional thermal resistance ΔR		0,08 (m².K/W)
Total solar energy transmittance g_tot		0,032 - 0,094 (according to chosen slat colour)*

Guiding rail

Essential characteristics	Performance
Wind resistance	Width of construction hole L (mm)	L <= 2 000		2 000 < L <= 3 000		3 000 < L <= 4 000		4 000 < L <= 4 500
	Standard EN/Beaufort	13659	Beaufort	13659	Beaufort	13659	Beaufort	13659	Beaufort
	Wind resistance class	5	8	4	7	3	6	2	5
	Max. wind speed v_max (km/h)	74		61		49		38
	Max. effective height wing	H_max = 4000 mm
	Width of construction hole L (mm)	4 500 < L <= 5 000		5 000 < L <= 5 500		5 500 < L <= 5 800		5 800 < L <= 6 000
	Wind resistance class	1	4	0	3	0	2	0	1
	Max. wind speed v_max (km/h)	28		19		11		5
	Max. effective height wing	H_max = 4000 mm
Additional thermal resistance ΔR		0,08 (m².K/W)
Total solar energy transmittance g_tot		0,032 - 0,094 (according to chosen slat colour)*

Download

Control and maintenance manual

Instructions motor Basic 10 Nm

Instructions motor Basic 6 Nm

Leaflet Exterior blinds

Leaflet Motor

Leaflet Sun protection systems

Measurement and assembly manual

Order form

Order form Emergency

Order form Front covers

Order form guiding channel

Order form packet slat

Order form shaped blinds

Setting up the receiver and controller

Technical manual
