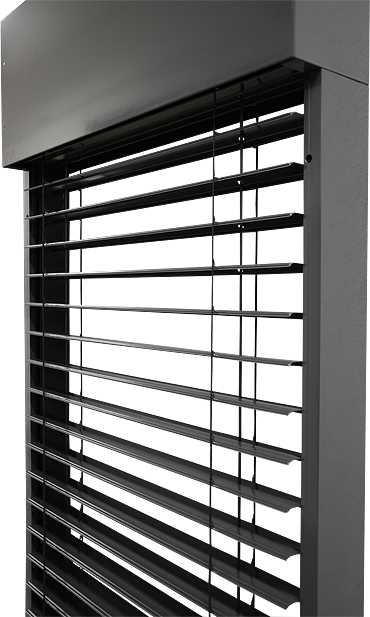

Self-supporting VIVA Venetian blind

The basis of the self-supporting blinds are guide rails, on which the entire weight of the armour lies. The main representative of this special design of exterior blinds is the VIVA self-supporting blind. All types and sizes of slats can be used for this self-supporting blind, except for Cetta 50. An insect mesh can also be integrated into them.

For the VIVA blind, the upper profile of the blind, including the entire package of slats, is placed in an pre-assembled box, which has an angular design. Its box can be made in two variants – under-plaster or recognized. The under-plaster variant means that the box is "hidden" under facade and when the blind is fully retracted into the box, this blind is not visible at all. This variant of design must be taken into account already during the implementation of the construction project. In the under-plaster version, the VIVA blind box can be provided with 10 mm thick hardened polystyrene from the front and back at the same time. The box is visible for the recognized variant.

I am interested in this product

Advantages

Benefits & advantages

faster and easier assembly
high level of shading
thermoregulatory and protective effect
decrease in the level of outside noise
lower profile from the extruded aluminium
electric control option
reduction of the noise from the blinds.

Get

Inspiration

Specification

Control: lowering, pulling up and tilting the slats by motor,
location of the control is anywhere,
design suitable for all types of exterior blinds except for Cetta 50,

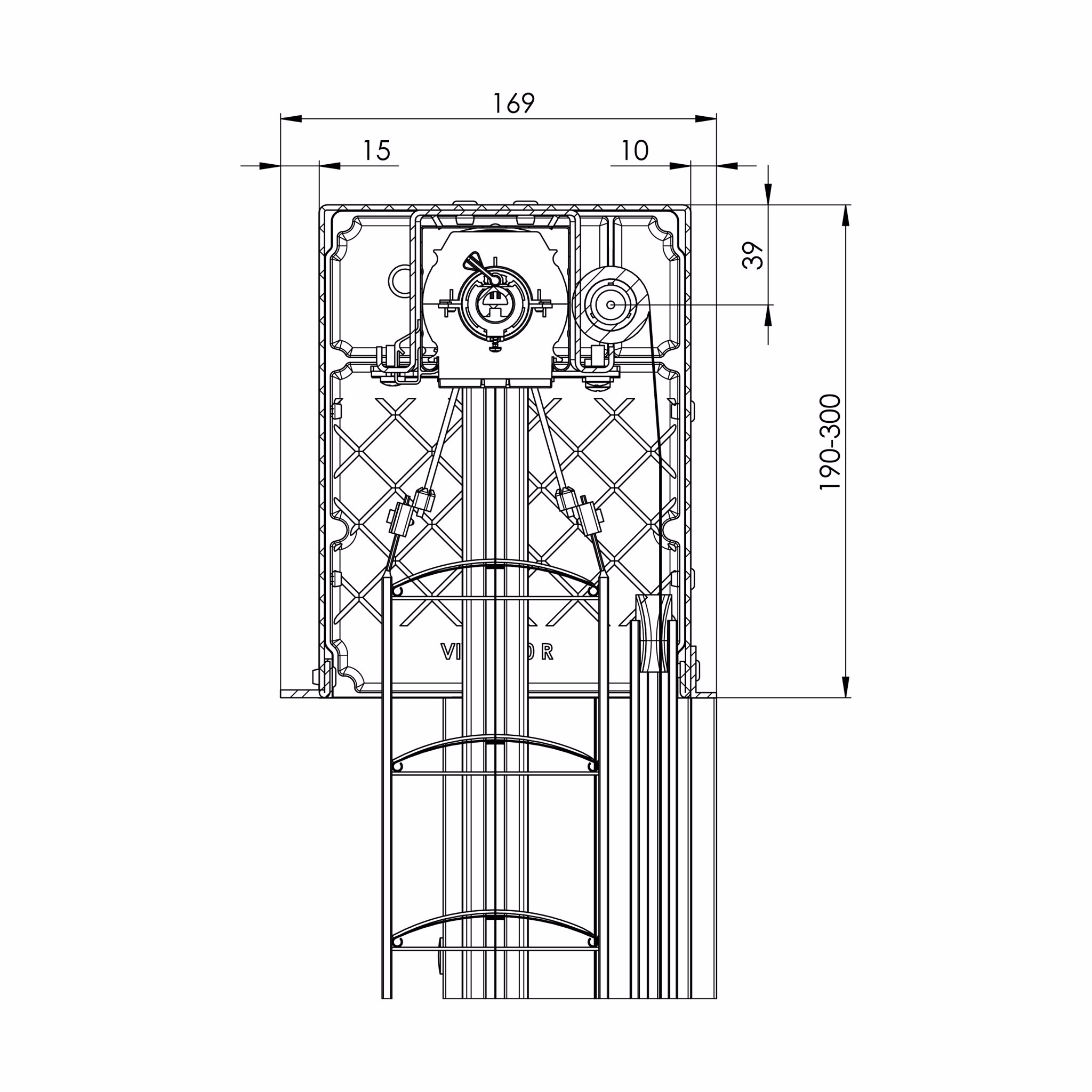

standard cover box height: 190 mm, 220 mm, 260 mm, 300 mm,
wide variability of the guide rails (up to 13 variants),
choice of box, bottom and guide rails in DECORAL or RAL design,
maximum dimension 4000 mm,
from 3,5 m to 4 m completed with a reinforcing profile.

Note: Dimensional tolerances for input values ± 2 mm

Limited dimensions for Cetta 80 blinds Viva

VIVA	Widht (mm)		Height (mm)	Guaranteed area (m²)
VIVA	min.	max.	min.	max.
without insect screen	600	4000	500	12
with insect screen	720	1800	500	3

The maximum height of blind, which the box of 300 mm is suitable for.

Maximum height of blind (in mm) by the type of slats for the selected dimension of box (without an insect screen)

Blind type / Height of the box in mm	190	220	260	300	300/3500*	Max. area (m²)
C65	800	1100	1700	2200	2200	8,8
C80	900	1300	2000	2600	2600	10,4
C80 Slim	1500	2100	2800	3600	3200	13
F60	2300	3200	4000	4000	4000	16
F80	3000	4000	4000	4000	4000	16
F100	3700	4000	4000	4000	4000	16
S65	1100	1500	2000	2600	2300	10
S90	1600	2100	2900	3700	3400	13
Z70	1100	1500	2100	2800	2500	11
Z90	1400	1900	2700	3400	3100	13

Note: Maximum height of the self-supporting blind VIVA with insect screen is 2500 mm.

*Note: A reinforcing profile is installed in the box by the width of blind bigger than 3500 mm.

Wind resistance

Essential characteristics	Performance
Wind resistance	Class 3, 4 (according to type slat)
Additional thermal resistance ΔR	0,08 (m².K/W)
Total solar energy transmittance g_tot	0,032 - 0,094 (according to select slat color)*
