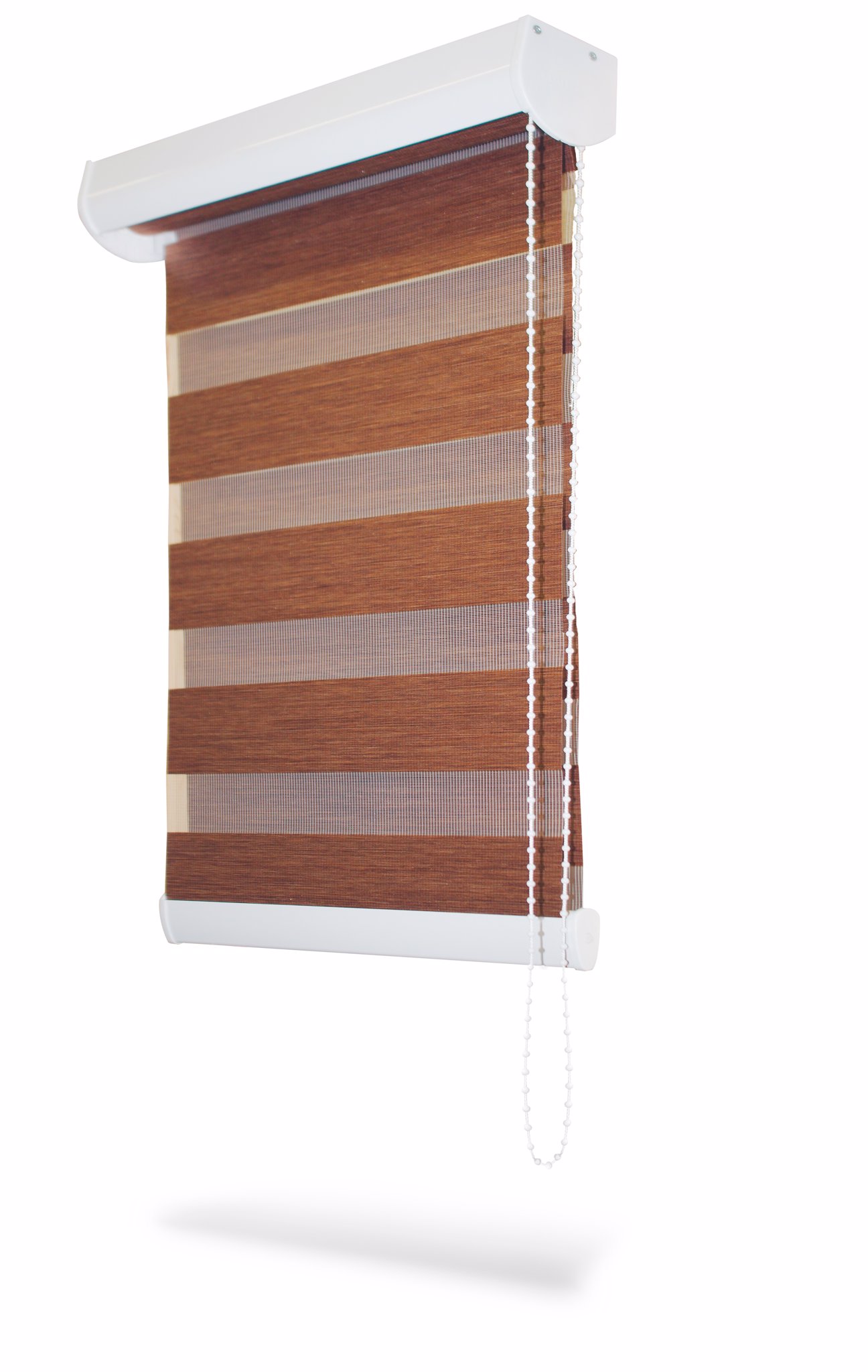

| Roller blind with a cover profile | Width (mm) | Height (mm) | Max. guaranteed area (m2) |
|
|---|---|---|---|---|
| min. | max. | max. | ||

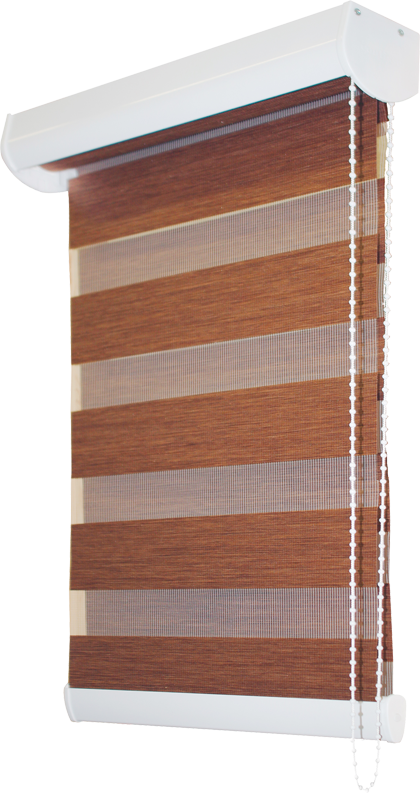

| Verra semi tube 28 | 300 / 500 (motor) | 2000 | 5000 (2600) | 4,4 |
Dimensions in the table apply to a 0.3 mm thick fabric. Dimensions in brackets apply to the heaviest fabric (0.7 mm thick).

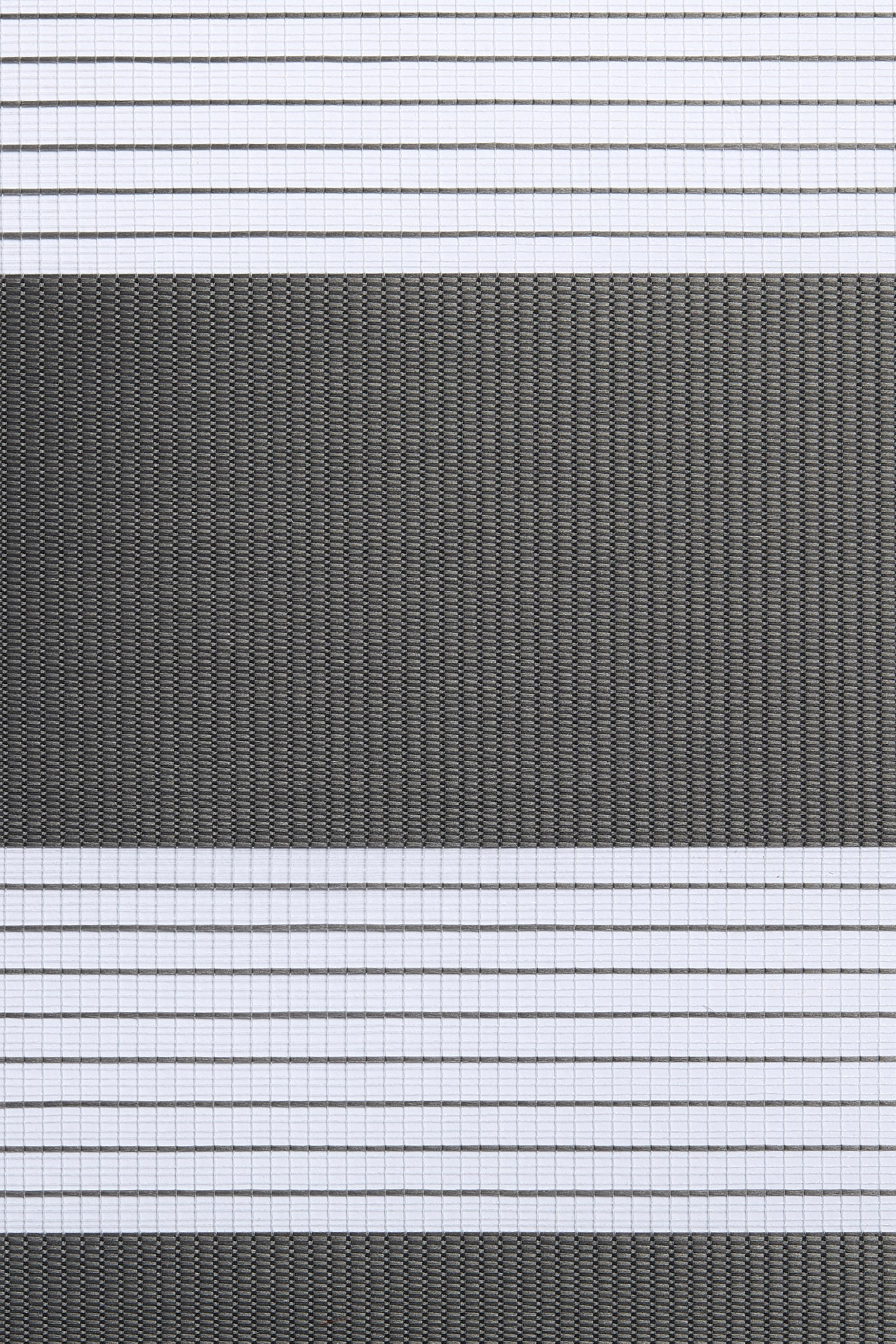

| Day-night fabrics | Width (mm)* | Height (mm)* | Max. guaranteed area (m2) |
|
|---|---|---|---|---|
| min. | max. | max. | ||
| Verra semi tube 28 | 300 / 500 (motor) | 2000 | 800 (1700) | 5,3 (3,4) |

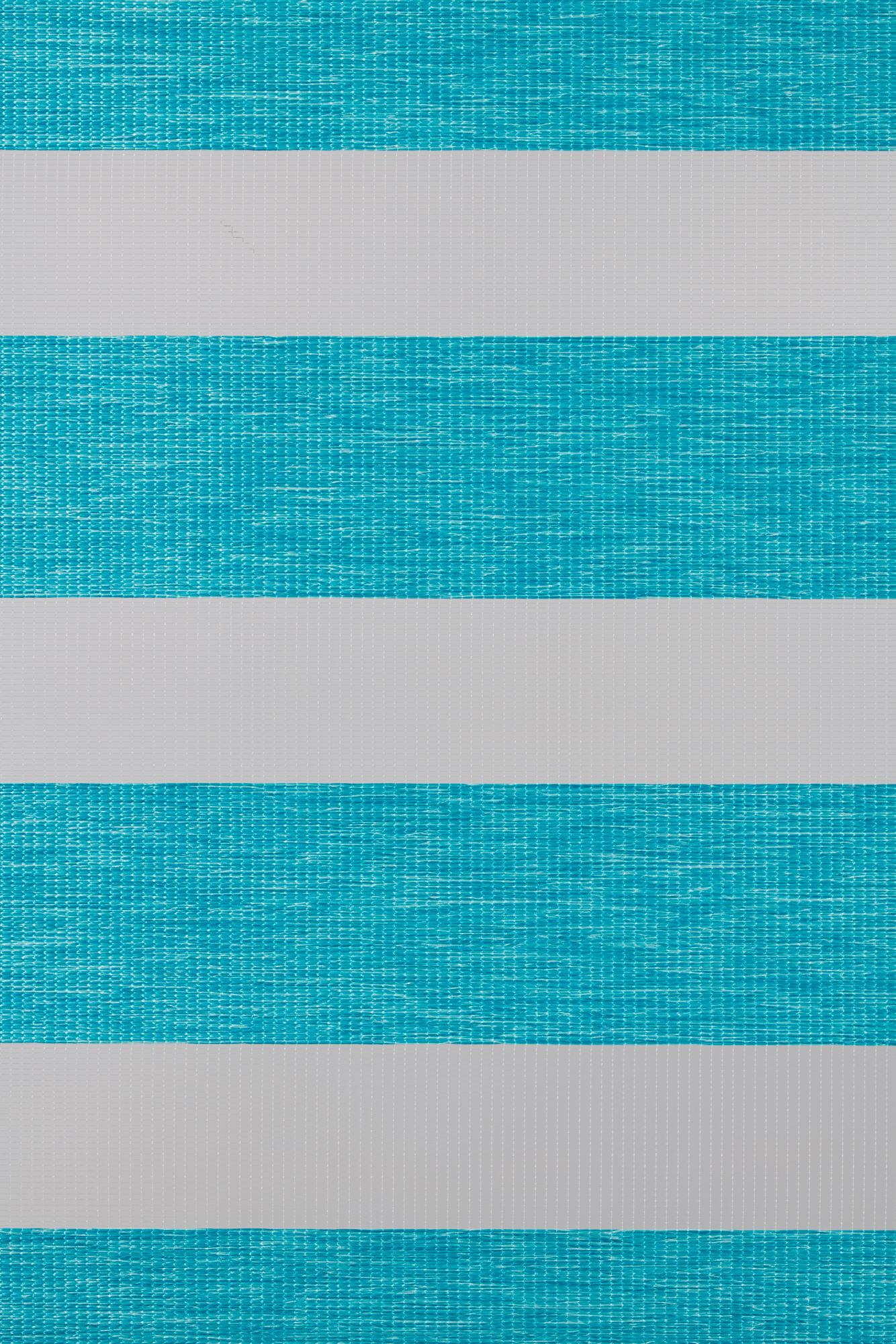

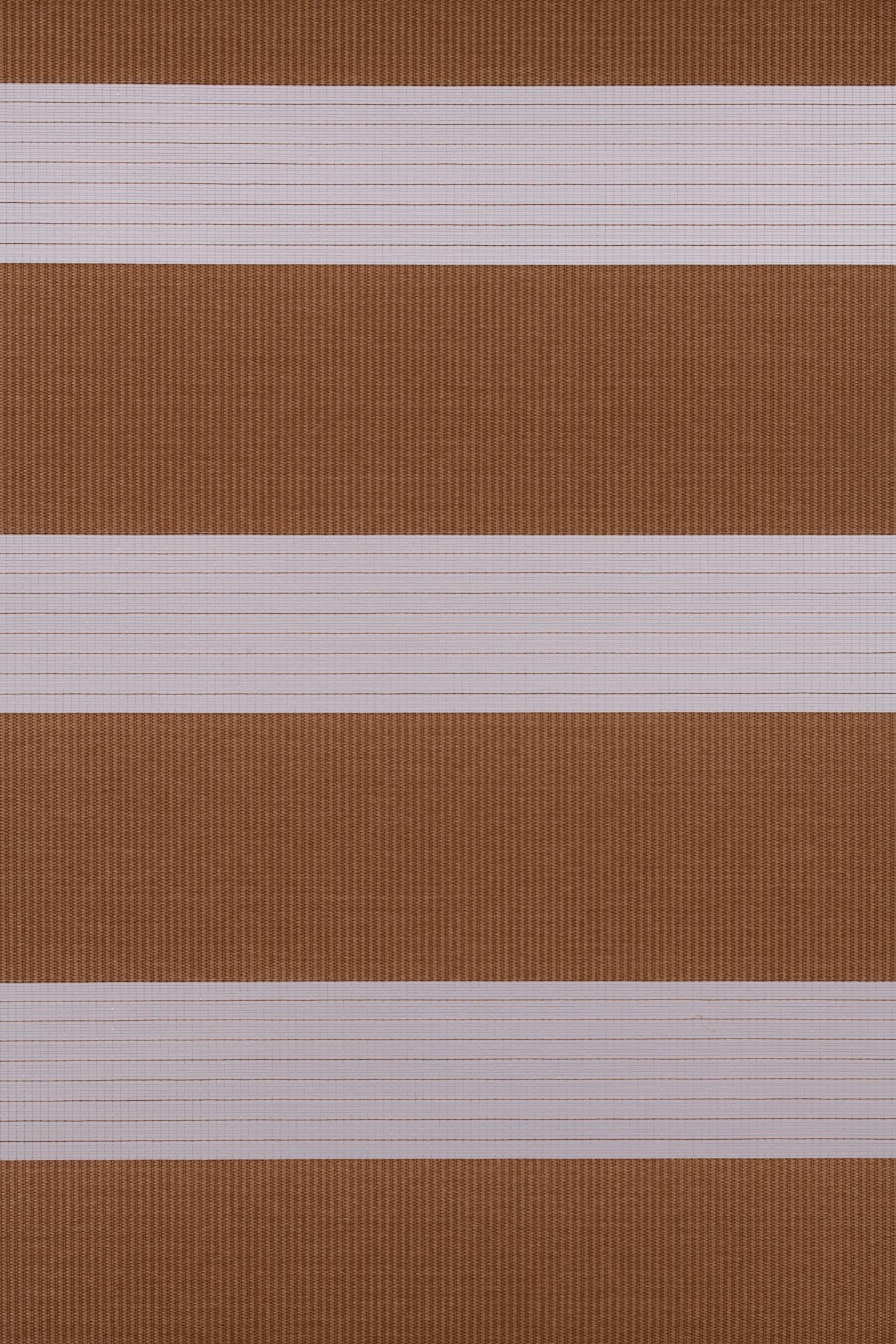

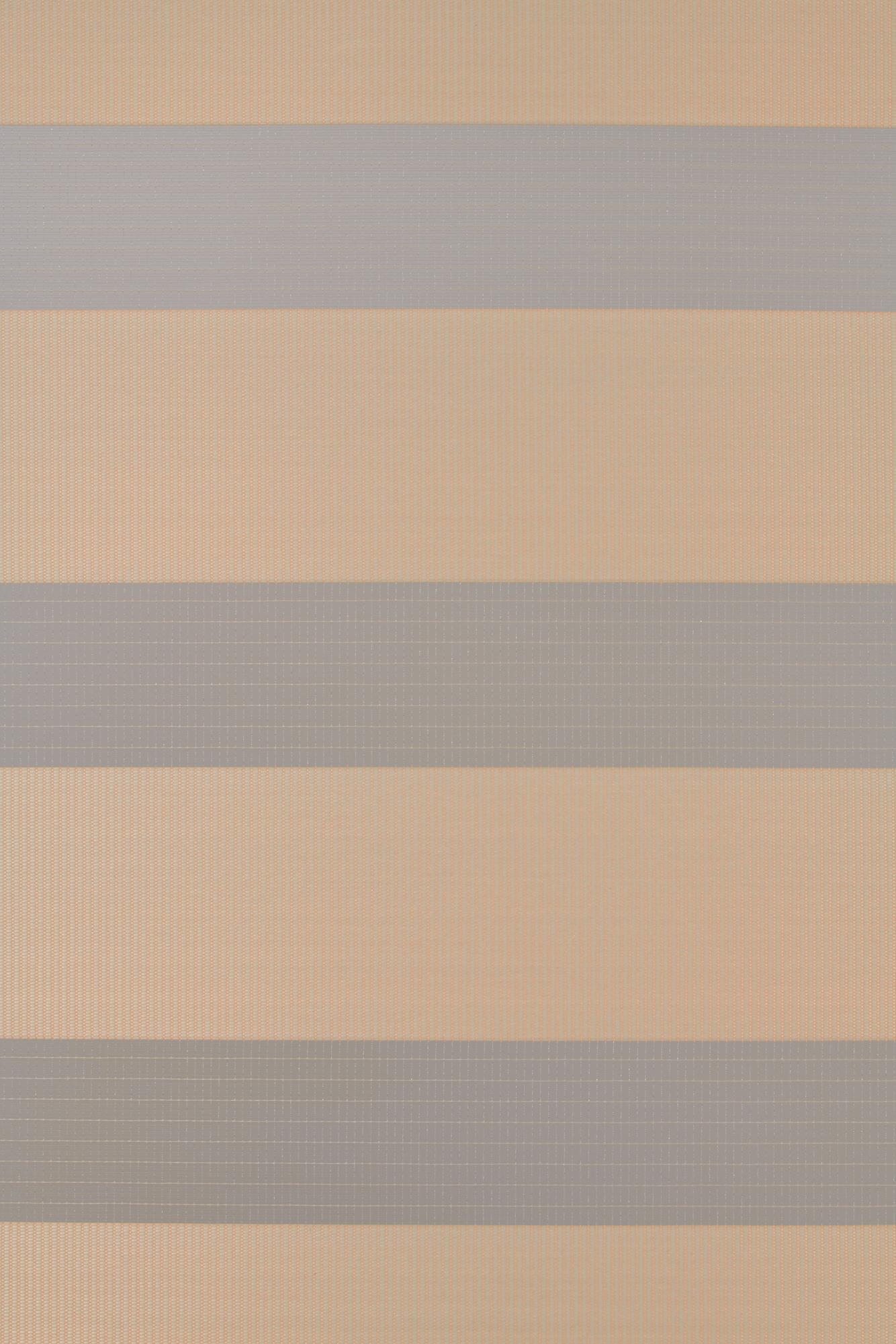

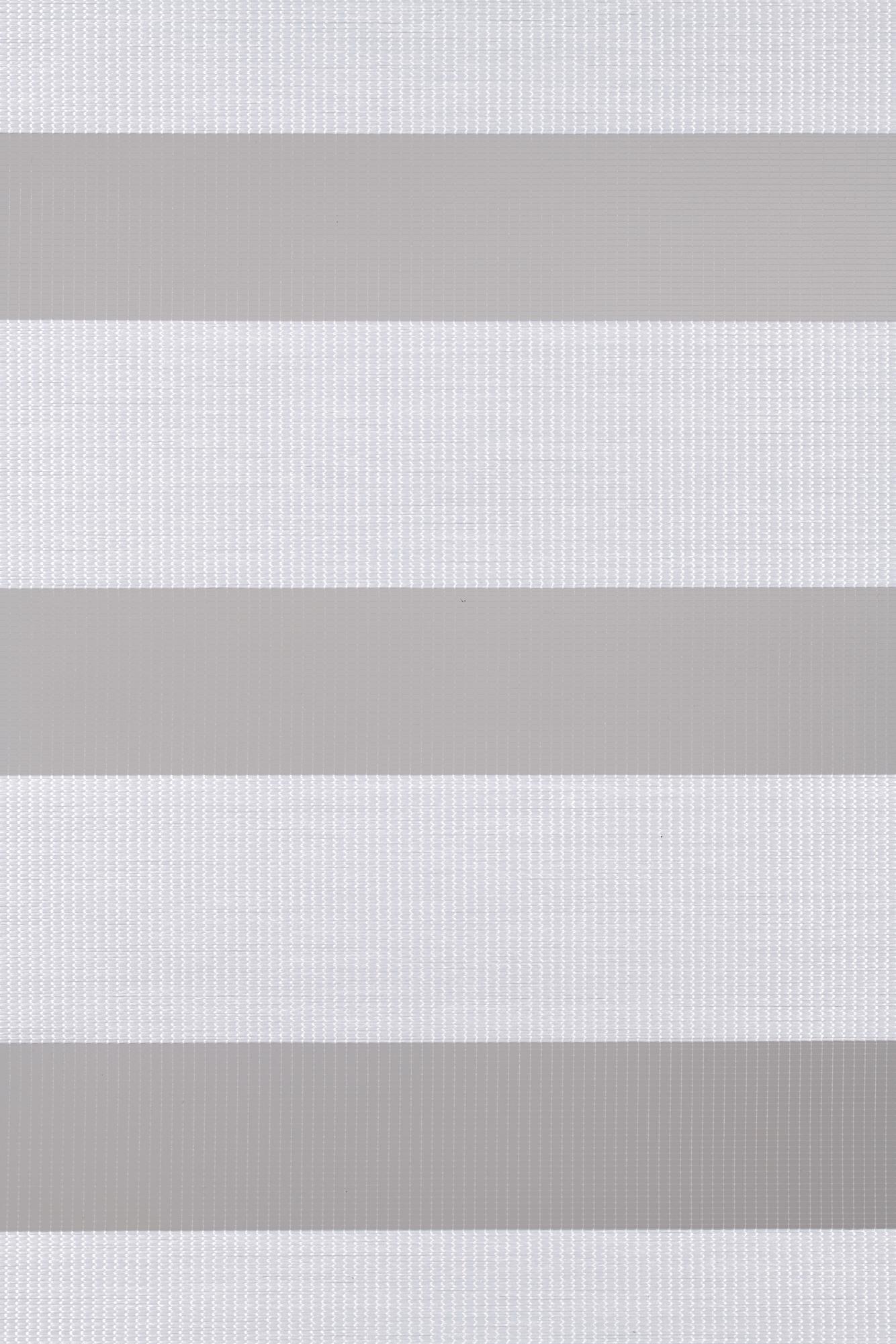

*the first number applies to Corfu 110 g/m2 fabric, the number of brackets applies to Cyprus 167 g/m2 fabric.
| Assembly profile (with clap) | Lower profile | Lower profile (day-night)* | Assembly | ||
|---|---|---|---|---|---|
| Business name | DRC-02 | RBR-F-A-43 | RBR/1 9010, RBR/1 PU52 | DRC-07 + DRC 09 | in front of window aperture (wall) in window aperture (ceiling) |
| Dimension (mm) | 67 × 57 | 15 × 30 | 39 × 17 | Ø 15 | |
| Material | Al | Al | Al | Al | |
| Cross-section |  |
 |
 |
 |
|
| Colour | white elox |
white elox |
elox | ||

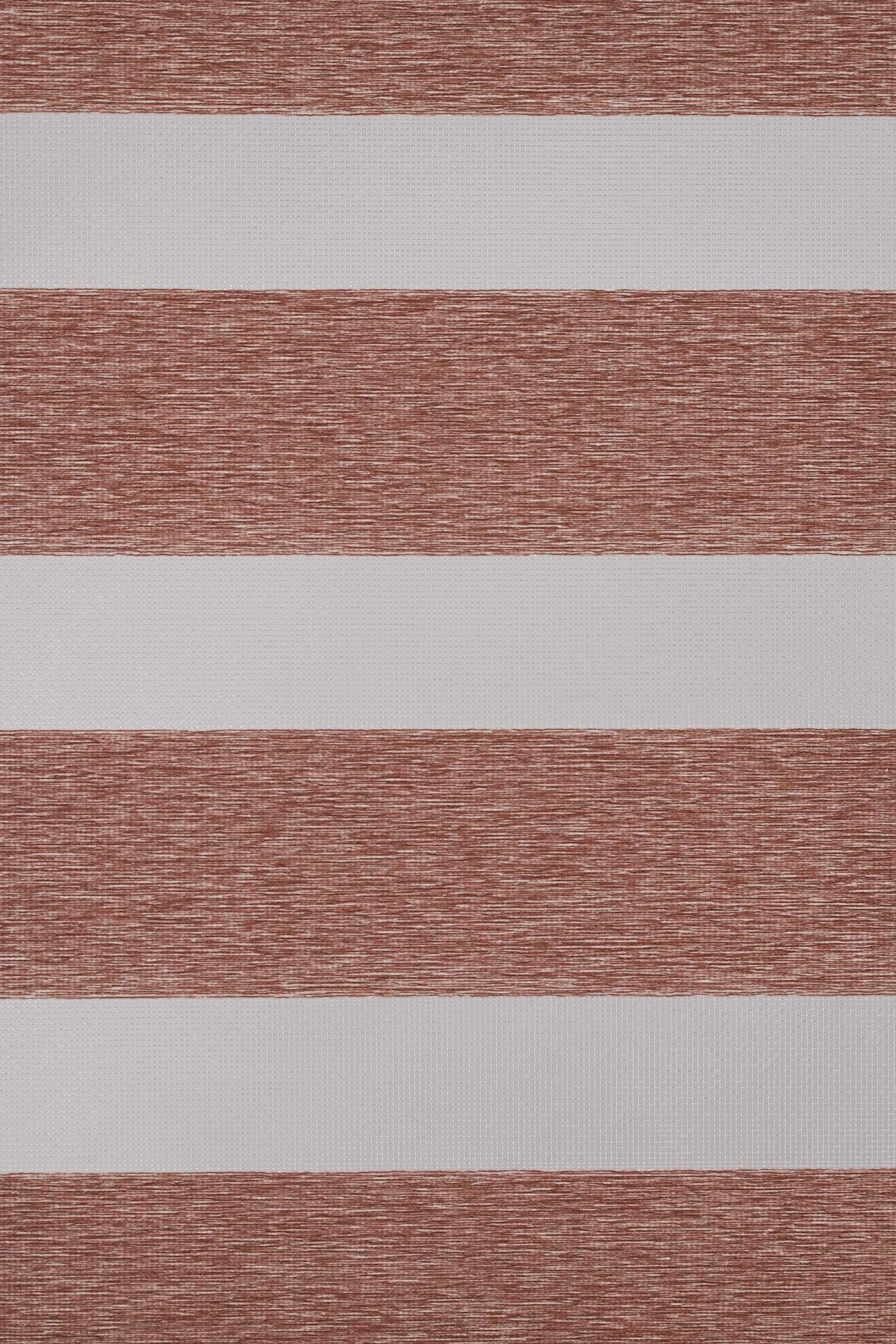

*for Rhodos fiber – only DRC07 bottom slat.

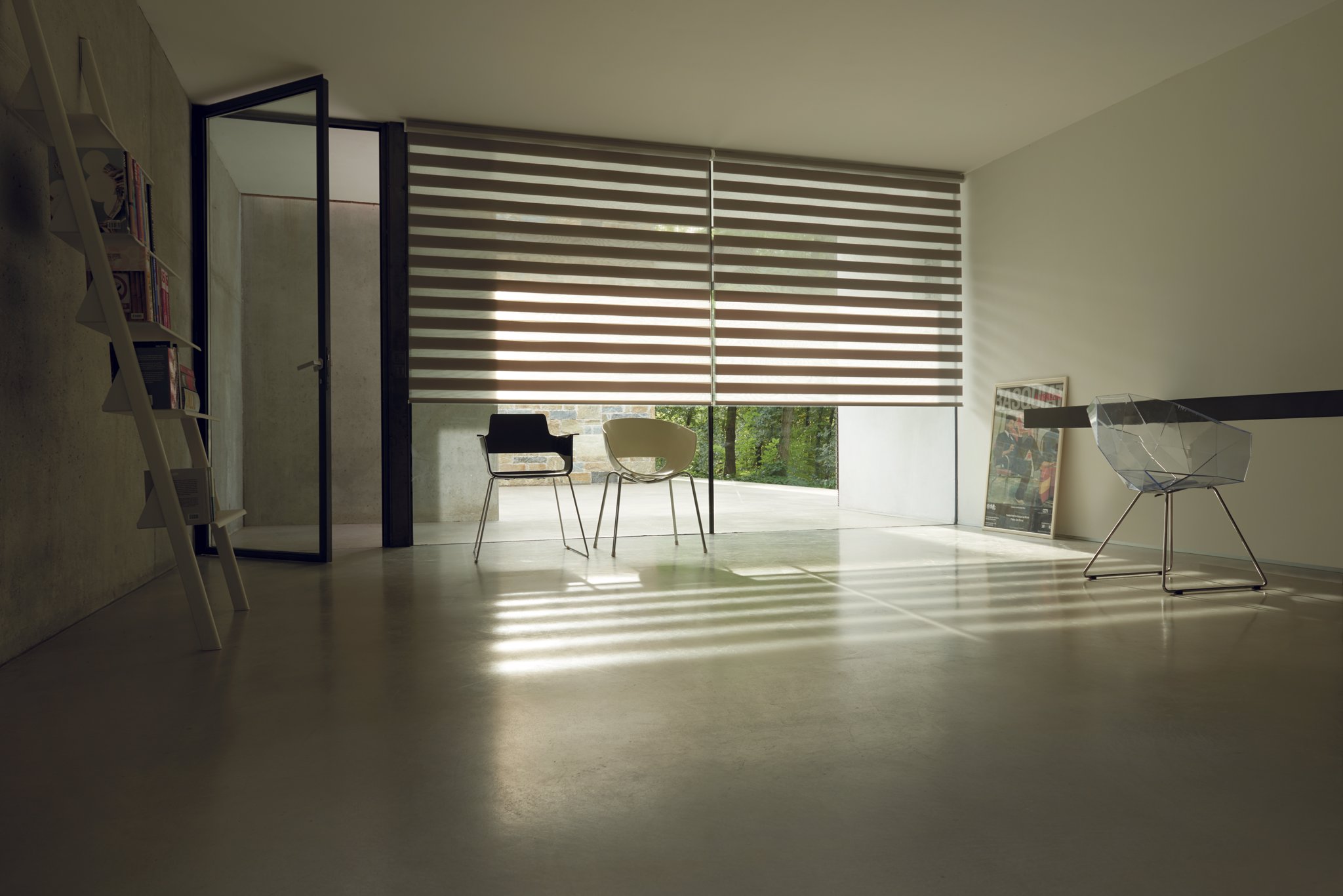

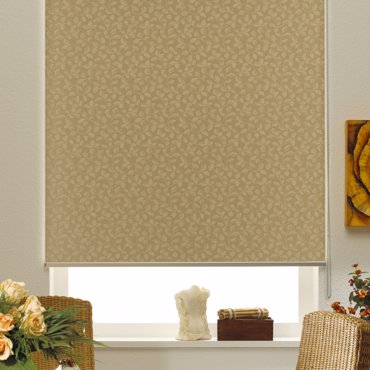

Product gallery
